Harvey Classic Vinyl Gliding Window

INSTALLED:
$848

Don't forget to SAVE YOUR QUOTE!

Obligations Free

Don't forget to SAVE YOUR QUOTE!

Obligations Free

Go back

Home
Windows
Slider
Harvey Classic Vinyl Gliding Window

Vinyl Window

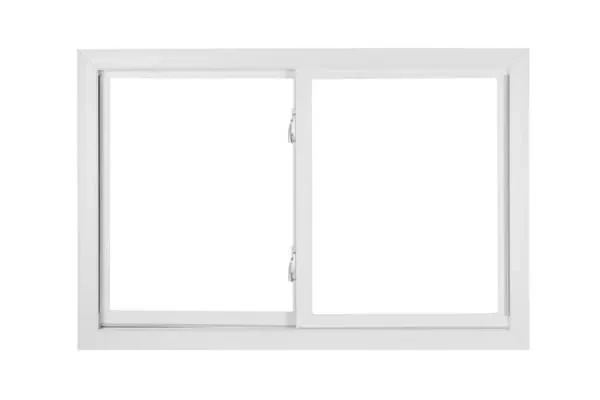

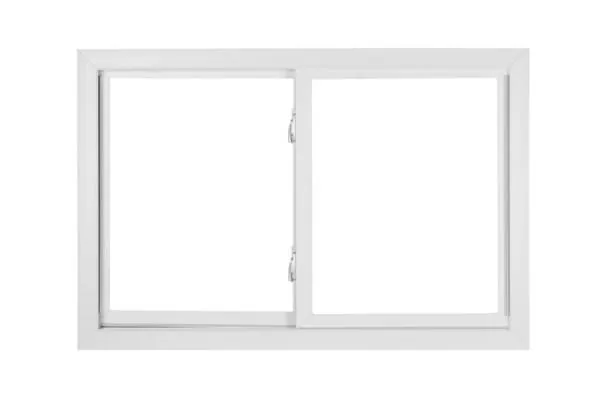

Harvey Classic Vinyl Gliding Window

Brand: Harvey

Harvey's vinyl rolling window is a smooth operator. Fully welded for maximum durability, the rolling window operates with ease on a set of brass rollers and are often used to satisfy bedroom egress requirements. Vinyl rolling windows are particularly helpful for people who choose to age in place or have limitations on physical movement.

ThermaLock glazing (U-Value 0.26)
ThermaLock 3X glazing option available (U-Value 0.19)
Heavy-walled, fully welded sash/frame add strength and durability
Double locks on windows with an opening height of 36 3/8″ or greater
SCREEN OPTIONS: Full and half sizes; FlexScreen or Aluminum frame; VIEWS or fiberglass screen wire

Configuration

Please choose your window configuration

Read me

Please follow manufacturer's width and height unit limitations.

Glider

Glider with Fixed Center

Show all

Please enter your window size

How to measure

Simply measure the window between interior trim on sides = width, measure your window between the top and bottom trim. Check attached picture with instructions HERE.

Frame width

Width(in) (min 26, max 86.25 )

Frame height

Height(in) (min 16.25, max 62.5 )

Please choose your insect screen type

What to choose?

In most cases, you will open only one sash at the time. So half screen is an "ok" choice. If you use window AC units you must choose half screen.

Half Screen

Full Screen

+ $58

Show all

Please choose your installation type

What is the difference?

"Replacement window" installation involves replacing only the window’s existing sash and leaving the window frame intact. New window will be installed into the existing window frame. This economical option does not disturb the existing exterior and interior trims.

"New construction" installation involves completely removing the existing window and replacing it with a new one. With this option, you can easily change the function, performance and appearance of your entire window’s style. By doing this kind of installation you can easily repair rotten wood, improve insulation around windows and get more glass area. See attached pictures HERE and HERE.

Replacement (One side stops included)

Existing stops to be reused if not all windows replaced

New construction (New interior/exterior trim required)

+ $90

Covers window cost difference and extra materials

Show all

Please choose your window interior color

White (Extruded vinyl)

Almond (Extruded vinyl)

+ $73

Show all

Please choose your window glass type

Low-E Double Pane

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+$0

Low-E Double Pane Obscure

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+$51

Low-E Double Pane Tempered

Tempered glass is stronger than standard glass and does not shatter into large shards when broken. Required in full bathrooms and if the bottom edge of the window is less than 18 inches above the floor.

+$105

Low-E Double Pane

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+$0

Low-E Double Pane Obscure

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+$102

Low-E Double Pane Tempered

+$210

Please choose your hardware color

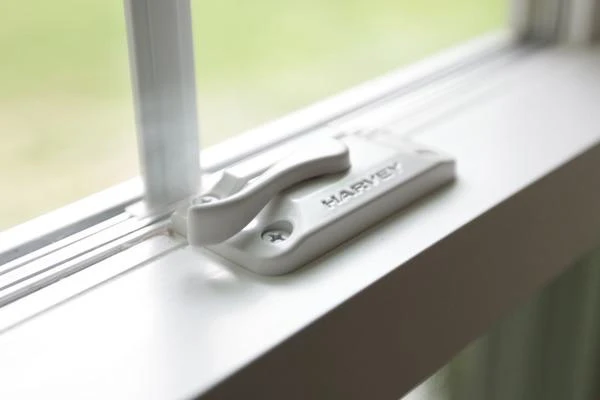

Cam Locks (White) (4 colors avail.)

White, Almond, Brushed Nickel and Oil-Rubbed Bronze

Show all

Please choose your window grids style

Read Me

-Fixed units in all window combinations don't include grids. -Quantity of lites in Prairie and Colonial Style are subject to change due to sizing. -Every additional lite over the specified quantity will cost 30$ more.

Glider No Grids

Glider Colonial

+ $51

Glider Prairie

+ $77

Glider Top Row

+ $26

3 Panel Glider No Grids

3 Panel Glider Colonial

+ $102

3 Panel Glider Prairie

+ $153

3 Panel Glider Top Row

+ $51

Show all

Grid Type (Glider Colonial)

1" GRIDS BETWEEN GLASS

+ $51

5/8" GRIDS BETWEEN GLASS

+ $51

1" SIMULATED DIVIDED LITES

+ $227

5/8" SIMULATED DIVIDED LITES

+ $227

Grid Type (Glider Prairie)

1" GRIDS BETWEEN GLASS

+ $77

5/8" GRIDS BETWEEN GLASS

+ $77

1" SIMULATED DIVIDED LITES

+ $340

5/8" SIMULATED DIVIDED LITES

+ $340

Grid Type (Glider Top Row)

1" GRIDS BETWEEN GLASS

+ $26

5/8" GRIDS BETWEEN GLASS

+ $26

1" SIMULATED DIVIDED LITES

+ $114

5/8" SIMULATED DIVIDED LITES

+ $114

Grid Type (3 Panel Glider Colonial)

1" GRIDS BETWEEN GLASS

+ $102

5/8" GRIDS BETWEEN GLASS

+ $102

1" SIMULATED DIVIDED LITES

+ $453

5/8" SIMULATED DIVIDED LITES

+ $453

Grid Type (3 Panel Glider Prairie)

1" GRIDS BETWEEN GLASS

+ $153

5/8" GRIDS BETWEEN GLASS

+ $153

1" SIMULATED DIVIDED LITES

+ $680

5/8" SIMULATED DIVIDED LITES

+ $680

Grid Type (3 Panel Glider Top Row)

1" GRIDS BETWEEN GLASS

+ $51

5/8" GRIDS BETWEEN GLASS

+ $51

1" SIMULATED DIVIDED LITES

+ $227

5/8" SIMULATED DIVIDED LITES

+ $227

Would you like to replace exterior trim?

Keep As Is

New PVC casing

+ $227

New PVC casing with additional trim on top

+ $317

New PVC casing with bandmolding on 3 sides

+ $363

Keep As Is

New PVC casing

+ $227

New PVC casing with additional trim on top

+ $317

New PVC casing with bandmolding on 3 sides

+ $363

Show all

Summary

ProductName	Harvey Classic Vinyl Gliding Window
Configuration	Glider
Frame width	40"
Frame height	40"
Base	Harvey Classic Vinyl Gliding Window
Interior Frame Color	White (Extruded vinyl)
Exterior Frame Color	Almond Solid Color (with almond interior)
Insect Screen Type	Half Screen
Installation Type	Replacement (One side stops included)
Glass Type	Low-E Double Pane
Hardware Color	Cam Locks (White) (4 colors avail.)
Grids Style	Glider Colonial
Exterior Trim	Keep As Is
Interior Trim	Keep As Is
Additional Work	No additional work is needed

INSTALLATION DETAILS

Complete remeasuring, ordering, and delivery of your choice windows.
Complete removal and disposal of existing windows
Complete removal and disposal of existing storm windows if required
Careful removal of interior or exterior stops in order to allow the current window to be removed
If necessary, the window opening will be re-flashed with appropriate water barrier tape in order to ensure water does not infiltrate the walls around the windows
Installation of your choice of replacement windows listed above according to the manufacturer's specifications including:
Prior to insertion into the wall, caulking of the windows in the interior/exterior surface that will be in contact with the stops
The perimeter of the window that will be in contact with the stops will be caulked to provide additional water protection and a clean finished look
Window to be installed in reasonably good condition opening. Any rotten wood repairs will be negotiated and discovering and complete inspection.
Proper shimming to ensure the windows are square and level within the openings
Windows will be secured in place with proper fasteners through the jambs.
Spray foam insulation will be applied around the entire unit to maximize the insulation and prevent air infiltration
Stops will be firmly re-applied
Screens will be installed
Windows will be cleaned and tested for proper operation
Thorough clean-up and removal of all dust and debris after installation is complete
All appropriate lead-safe work procedures will be followed if required per federal and state guidelines
The installer doesn't do any project-related paintwork that could be caused but not limited by new trim installation, storm window removal or etc.
Reconnection and testing of existing alarm systems should be performed by Alarm service providers. Installation of Wireless sensors is recommended. Any drilling in the window frame will void the manufacturer's warranty.
If, during moving of existing opening or creation of new one, any HVAC, plumbing or electrical supply lines to be discovered, the extra work, related to their relocation, will be performed by the licensed service provider at extra cost. Customers can hire their own licensed technician to do this type of work, but it should be performed in a timely manner.
All installations performed by UBrothers Construction at owner-occupied homes are guaranteed by 5 years warranty from the date of job completion and for one year for rental or commercial properties. This warranty covers any defects or functional issues that fall outside of the manufacturer's warranty and are a result of an error or oversight that occurred during the installation process.
