Vinyl Window

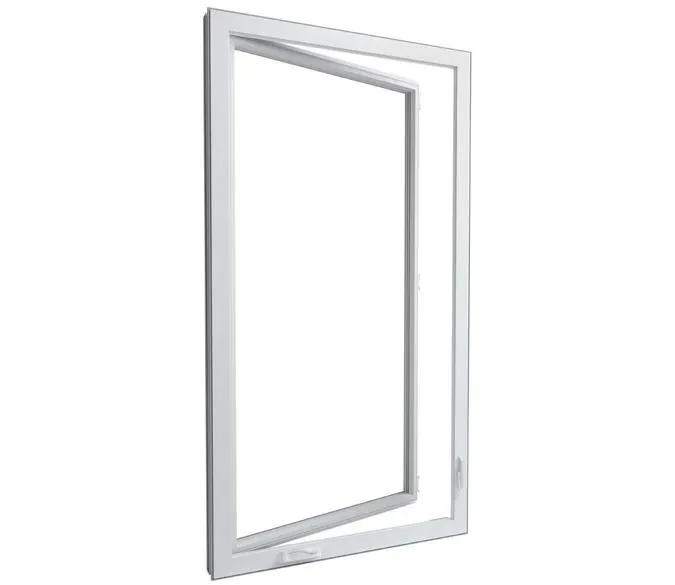

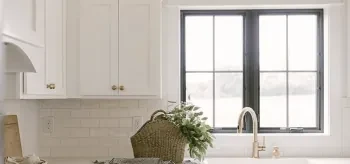

Pella 250 Series Casement Window

Brand: Pella

  • Multichambered frame and fully welded sashes improve strength and thermal performance
  • Performance class and grade LC35-LC50 and STC of 30-33 for dual pane windows and 34 for triple-pane windows
  • Available in sizes from 14-1/2" x 17-1/2” to 35-1/2” x 71-1/2”
  • Low-maintenance, easy-care vinyl frames mean no more painting, staining or refinishing
slide slide slide slide slide slide slide
Download brochure

Configuration

Please choose your window configuration

Read me

Please follow manufacturer's width and height unit limitations.

Show all

Please enter your window size

How to measure

Simply measure the window between interior trim on sides = width, measure your window between the top and bottom trim. Check attached picture with instructions HERE.

Please choose your insect screen type

What to choose?

In most cases, you will open only one sash at the time. So half screen is an "ok" choice. If you use window AC units you must choose half screen.
Show all

Please choose your installation type

What is the difference?

"Replacement window" installation involves replacing only the window’s existing sash and leaving the window frame intact. New window will be installed into the existing window frame. This economical option does not disturb the existing exterior and interior trims.

"New construction" installation involves completely removing the existing window and replacing it with a new one. With this option, you can easily change the function, performance and appearance of your entire window’s style. By doing this kind of installation you can easily repair rotten wood, improve insulation around windows and get more glass area. See attached pictures HERE and HERE.

Show all

Please choose your window exterior color

Show all

Please choose your window interior color

Show all

Please choose your window glass type

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+0$

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+59$

Tempered glass is stronger than standard glass and does not shatter into large shards when broken. Required in full bathrooms and if the bottom edge of the window is less than 18 inches above the floor.

+133$

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+0$

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+59$

Tempered glass is stronger than standard glass and does not shatter into large shards when broken. Required in full bathrooms and if the bottom edge of the window is less than 18 inches above the floor.

+133$

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+0$

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+117$

Tempered glass is stronger than standard glass and does not shatter into large shards when broken. Required in full bathrooms and if the bottom edge of the window is less than 18 inches above the floor.

+266$

Reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

+0$

Obscure glass offers some level of a reduction in transparency. Commonly used in bathrooms and hallways.

+117$

Tempered glass is stronger than standard glass and does not shatter into large shards when broken. Required in full bathrooms and if the bottom edge of the window is less than 18 inches above the floor.

+266$

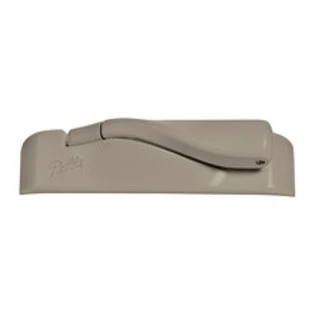

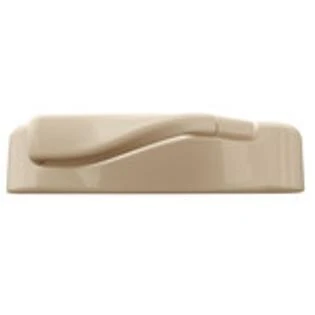

Please choose your hardware color

Show all

Please choose your window grids style

Read Me

-Fixed units in all window combinations don't include grids. -Quantity of lites in Prairie and Colonial Style are subject to change due to sizing. -Every additional lite over the specified quantity will cost 30$ more.
Show all

Would you like to replace exterior trim?

Show all

Would you like to replace interior trim?

See other trim profiles.

Check the catalog for available trim profiles. Click HERE.

Show all

Please choose additional work that is needed.

Show all

Summary

ProductName Pella 250 Series Casement Window
Configuration Casement (Hinged Right)
Width 20"
Height 38"
Base Pella 250 Vinyl Casement Window
Interior Frame Color Solid-Color (White)
Exterior Frame Color Dual Color (Poplar white)
Insect Screen Type Full Screen
Installation Type Replacement (One side stops included)
Glass Type Low-E Double Pane
Hardware Color Fold-Away Crank White
Grids Style Casement Colonial
Exterior Trim Keep As Is
Interior Trim Keep As Is
Additional Work No additional work is needed

 INSTALLATION DETAILS

  • Complete remeasuring, ordering, and delivery of your choice windows.
  • Complete removal and disposal of existing windows
  • Complete removal and disposal of existing storm windows if required
  • Careful removal of interior or exterior stops in order to allow the current window to be removed
  • If necessary, the window opening will be re-flashed with appropriate water barrier tape in order to ensure water does not infiltrate the walls around the windows
  • Installation of your choice of replacement windows listed above according to the manufacturer's specifications including:
  • Prior to insertion into the wall, caulking of the windows in the interior/exterior surface that will be in contact with the stops
  • The perimeter of the window that will be in contact with the stops will be caulked to provide additional water protection and a clean finished look
  • Window to be installed in reasonably good condition opening. Any rotten wood repairs will be negotiated and discovering and complete inspection.
  • Proper shimming to ensure the windows are square and level within the openings
  • Windows will be secured in place with proper fasteners through the jambs.
  • Spray foam insulation will be applied around the entire unit to maximize the insulation and prevent air infiltration
  • Stops will be firmly re-applied
  • Screens will be installed
  • Windows will be cleaned and tested for proper operation
  • Thorough clean-up and removal of all dust and debris after installation is complete
  • All appropriate lead-safe work procedures will be followed if required per federal and state guidelines
  • The installer doesn't do any project-related paintwork that could be caused but not limited by new trim installation, storm window removal or etc.
  • Reconnection and testing of existing alarm systems should be performed by Alarm service providers.  Installation of Wireless sensors is recommended. Any drilling in the window frame will void the manufacturer's warranty.
  • If, during moving of existing opening or creation of new one, any HVAC, plumbing or electrical supply lines to be discovered, the extra work, related to their relocation, will be performed by the licensed service provider at extra cost. Customers can hire their own licensed technician to do this type of work, but it should be performed in a timely manner.
  • All installations performed by UBrothers Construction at owner-occupied homes are guaranteed by 5 years warranty from the date of job completion and for one year for rental or commercial properties. This warranty covers any defects or functional issues that fall outside of the manufacturer's warranty and are a result of an error or oversight that occurred during the installation process.
